IHI Turbo Compressors

CENTRIFUGAL AIR COMPRESSOR

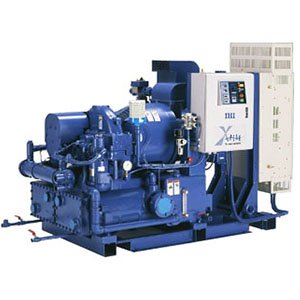

Tx-M series

Tx-M is the world smallest geared centrifugal compressor developed with our cutting edge aerodynamic technologies. With Tx-M series, We have created new centrifugal compressor’s market in manufacturing industries.

Specifications
Motor Size 75kW-100kW 100-133hp
Flow Rate 785-1,080m3/h 462-636cfm
Discharge Pressure 0.59-0.83MPaG 85-120psig
Dimensions Length 2,200-2,300mm
Width 1,300mm
Height 1,400-1,500mm
Weight 2,200-2,300kg

Simple and Reliable Design

Tx-M series consists of vital components, such as air cooler, main motor, control panel, starter, gear box, suction filter and all these will be fitted into one compact package. This simple design allows for smaller installation space and shorter installation time. The structure of the robust gear box provides the customers with high reliability by utilizing tilting pad journal bearing, customized core parts(Impeller, diffuser). These parts are designed with anti-wearing technology, built for long life and stable operation.


Low maintenance

Tx-M series has been designed to be the more simple and robust option, therefore, minimizing maintenance cost and time as compared to rotary screw compressors which needs regular replacement for the capital parts.

100% Oil-Free

IHI centrifugal compressors supply 100% oil free air to the customers. They are classified under the latest ISO8573-1 Class 0 oil free, which is the highest grade for the purity of compressed air, by an independent third-party test house TÜV in Germany, minimizing the risk of oil contamination.
