IHI Turbo Compressors

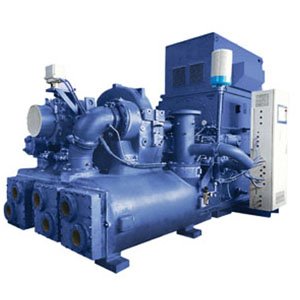

T3 Series

T3 series is the latest model which fits in the middle range between TRE and TRX series. With T3 series, IHI has been able to offer optimized specification thanks to wide range of aerodynamic design, low maintenance and easy installation for more customers all over the world.


Motor Size 750kW-1,320kW 1,000-1,760hp
Flow Rate 8,200-13,800m3/h 4,826-8,122cfm
Discharge Pressure 0.2-1.5MPaG 30-215psig
Dimensions Length 4,600-5,700mm
Width 2,250-2,500mm
Height 2,000-3,000mm
Weight 10,000-16,000kg

User customization

We have more than 1,500 aero parts design for the most optimized centrifugal compressors to meet customers' requirements. The aerodynamic design has been analyzed by Computational Fluid Dynamics (CFD) method, same as we use when designing jet engines and turbo chargers.

Advanced energy saving

By supplying the most suitable centrifugal compressors , IHI can contribute to energy saving for your plant, as well as reducing life cycle cost dramatically.

Simple and reliable design

T3 series consists of vital components, such as air cooler, main motor, control panel, gear box, suction filter and all these will be fitted into one compact package. This simple design allows for smaller installation space and shorter installation time. The structure of the robust gear box provides the customers with high reliability by utilizing tilting pad journal bearing, customized core parts(Impeller, diffuser). These parts are designed with anti-wearing technology, built for long life and stable operation.

100% Oil-Free

IHI centrifugal compressors supply 100% oil free air to the customers. They are classified under the latest ISO8573-1 Class 0 oil free, which is the highest grade for the purity of compressed air, by an independent third-party test house TÜV in Germany, minimizing the risk of oil contamination.
